COB LED / V2 PRO Race Wire Combo Pack - For HeavyMetal PRO Frame - (Choose Color)
COB LED / V2 PRO Race Wire Combo Pack - For HeavyMetal PRO Frame - (Choose Color)
Regular price
$18.00 USD
Regular price
$19.00 USD
Sale price
$18.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Everything you need to LIGHT up your HeavyMetal PRO Frame!!! Be sure to stand out in a crowd with 500mm of super bright COB LEDs... Combine with V2 PRO Oversized Race Wire PCB for a super clean build, quick motor changes & easy LED mounting... Sized for our HeavyMetal PRO Short arms / Compatible with most 7" Street League & Pro Stock Frames...

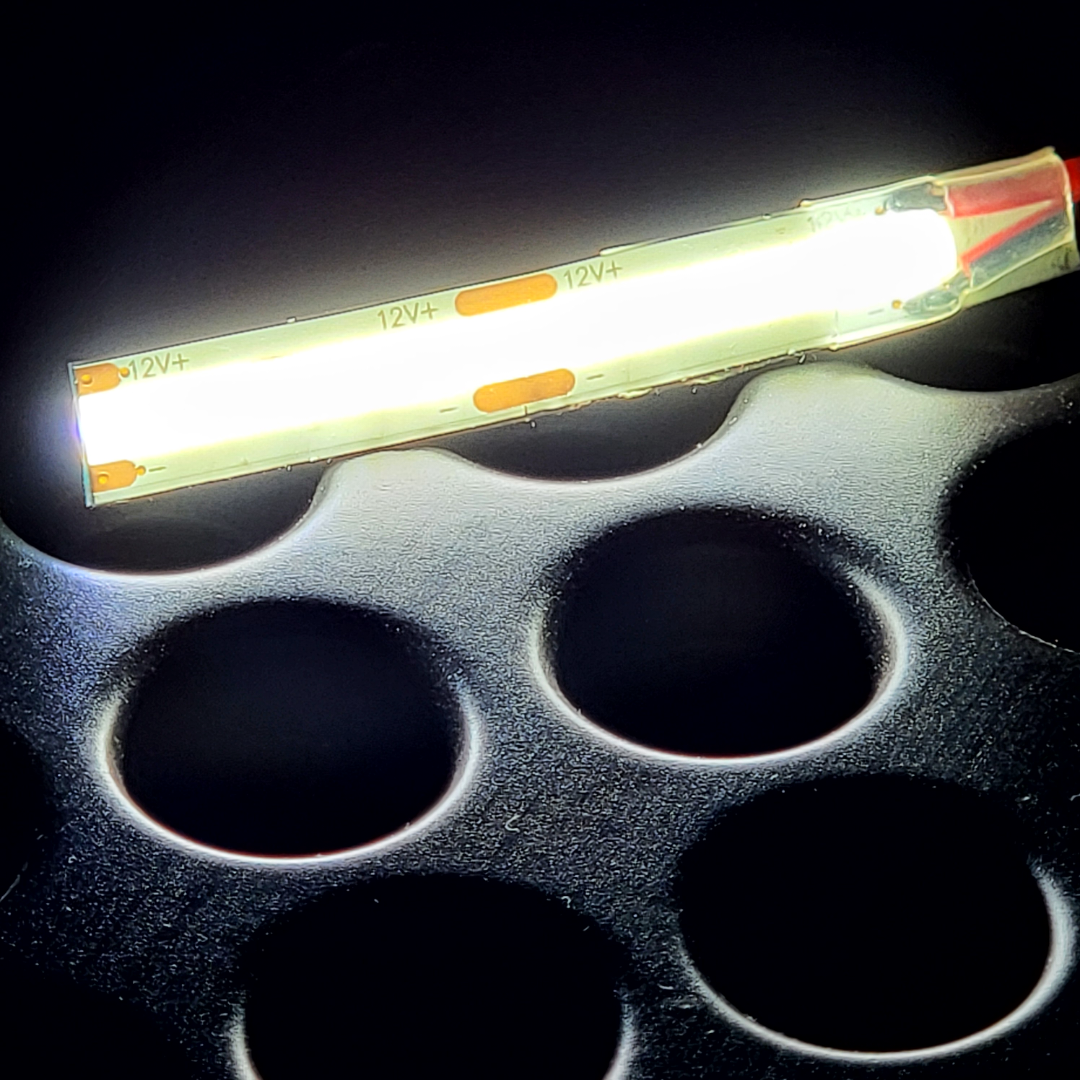

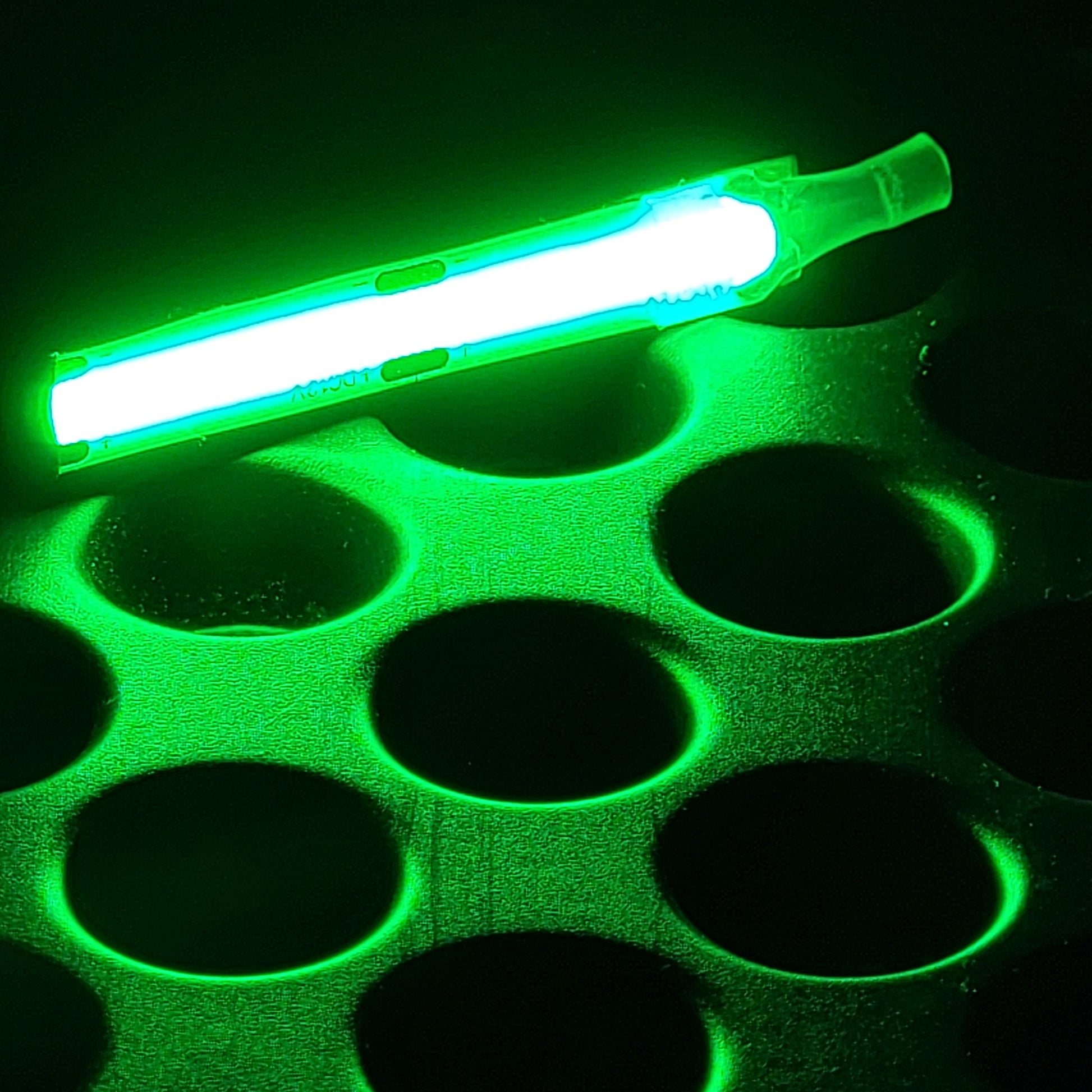

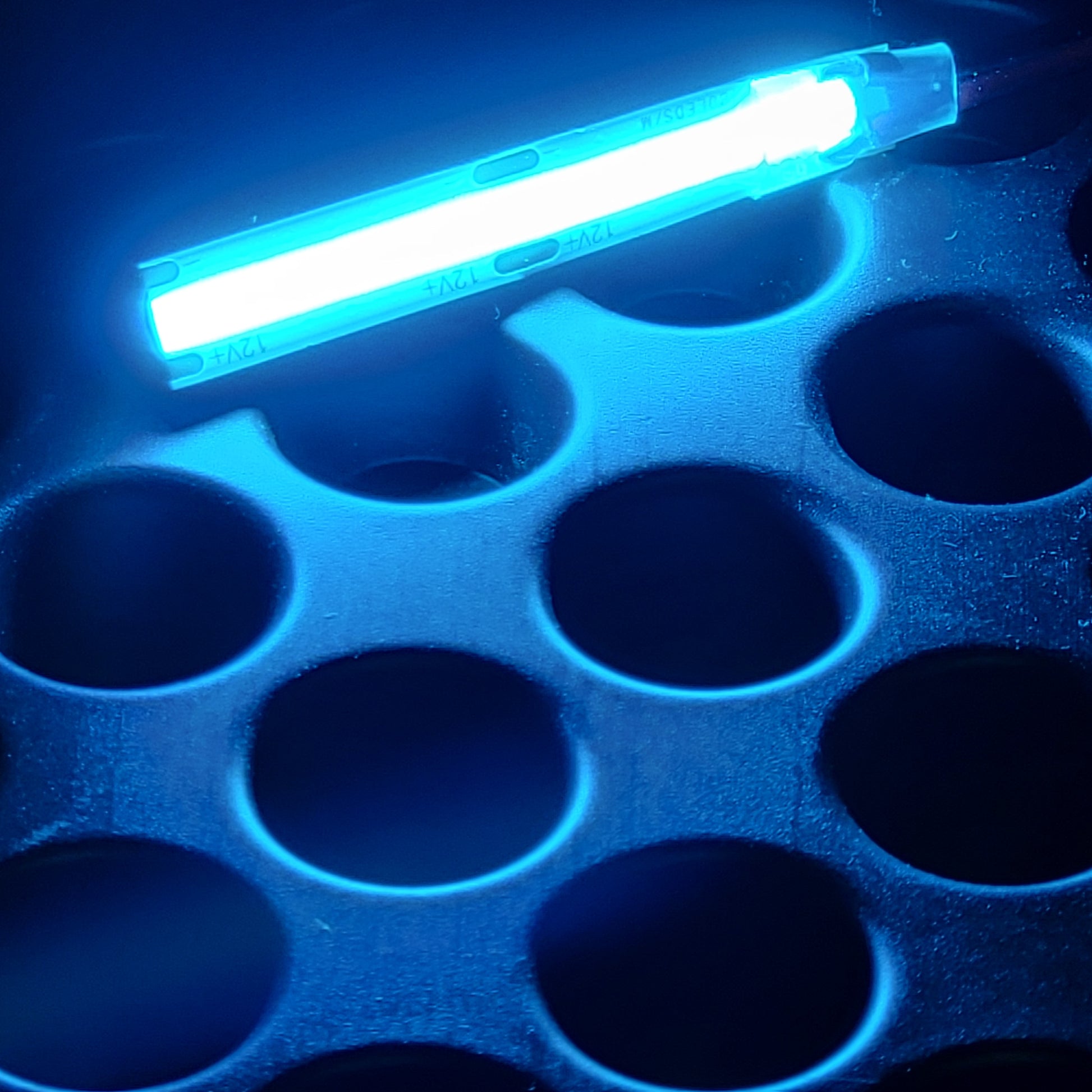

COB LED Specs: 12v COB LED strips can be powered by soldering the positive and negative LED pads to any 2 ESC motor channels (3S - 5S quads)...
Note: 24v COB LEDs Recommend For 6S (Not Included)
Note: COB LED strips come soldered from the manufacturer at intervals, it is normal to receive random LED strips with solder pre-applied to 2 of the pads...

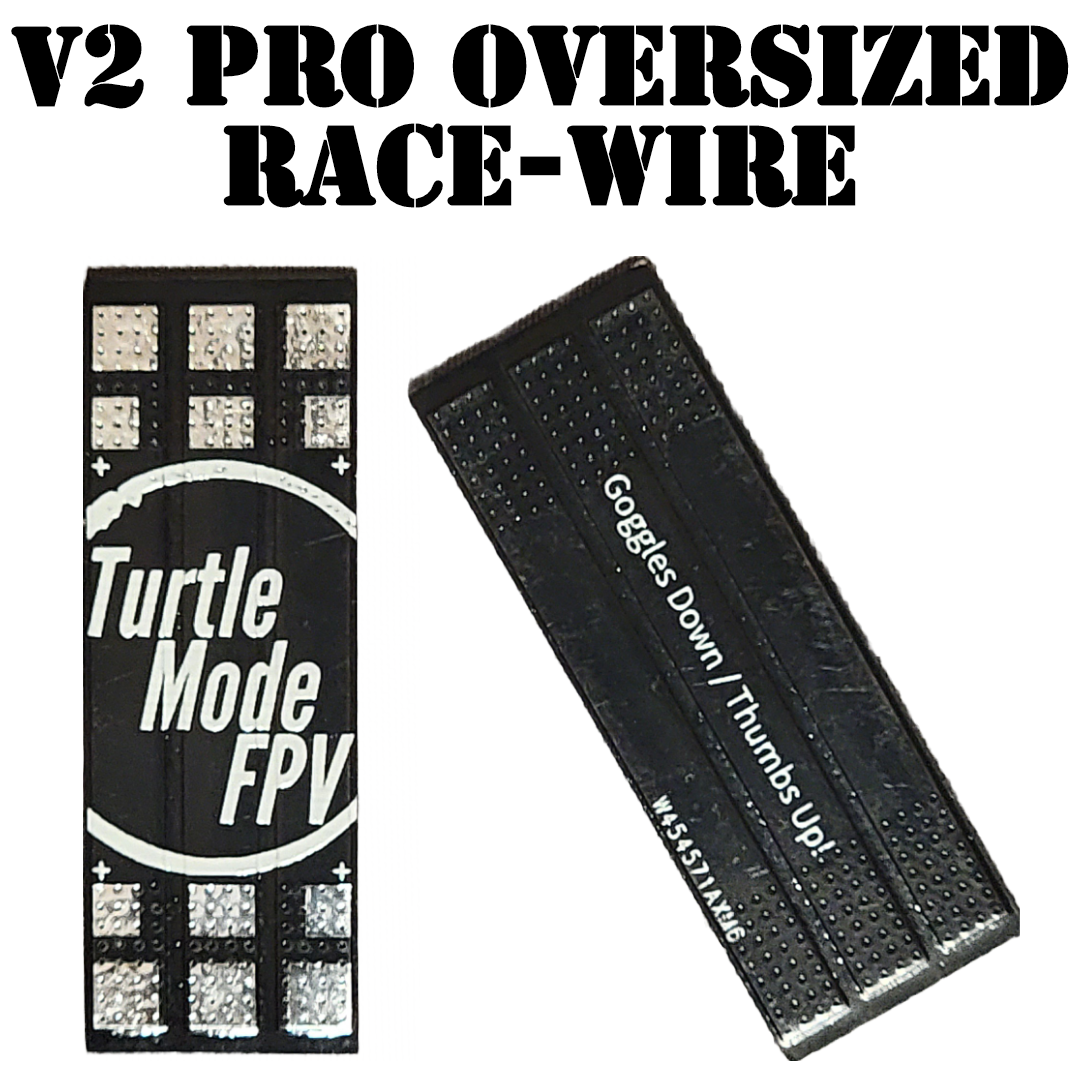

Oversize Race Wire Specs: Dimensions: 42mm Long × 15mm wide × 2mm thick | Double layered extra wide 3oz. copper traces | Extra large EZ solder pad for motor wires & COB LEDs
Weight: Kit adds approximately 30 grams total weight once assembled...

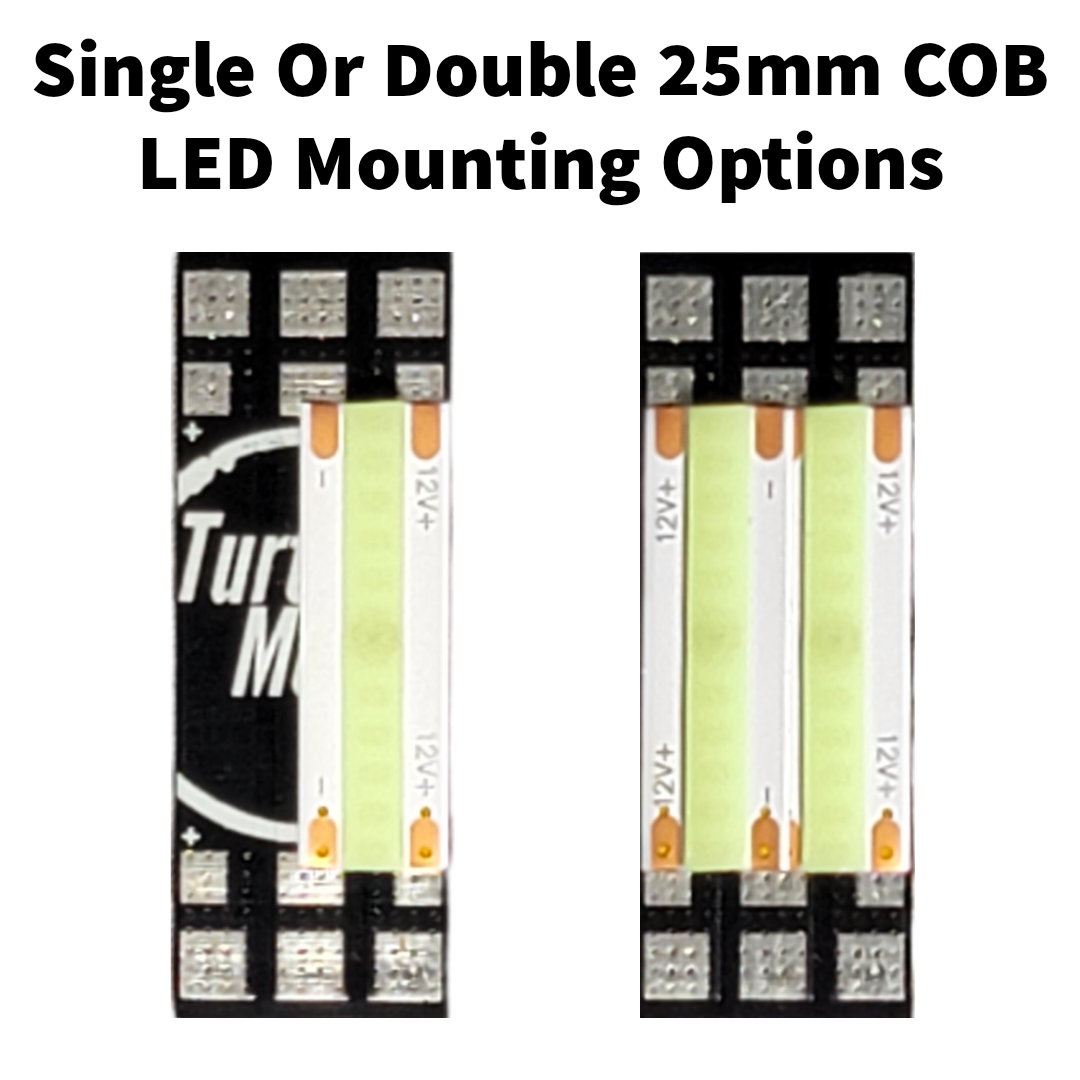

Build Tips: - Expose adhesive backing on 25mm LED strips (8x), apply to race wire PCB and solder the 4 corners to make LED Race Wire... (Note: When attaching double LED strips to a single PCB the negative sides of both strips must share the center solder pad or only 1 strip will light up)... Attach LED Race Wire to top of arms with double sided tape (not included)... Apply 50mm LED strips (4x) to bottom of arms, connect to 2 ESC channels using 2 short wires... (2x 50mm strips included as extra for repairs)...

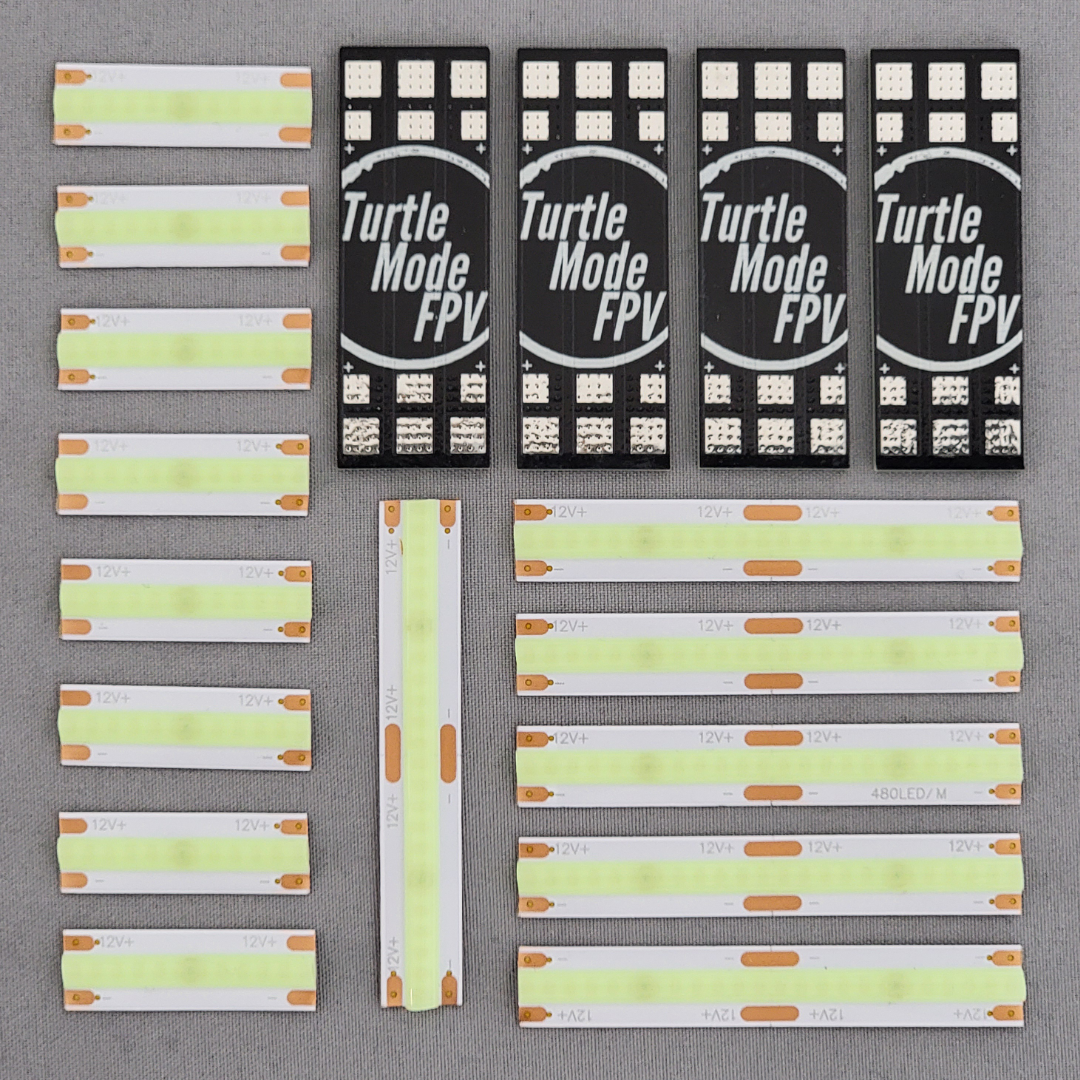

Included:
- Oversized Race Wire PCB w/ solder pads for COB LEDs - (4x)
- 25mm Length COB LED strips - (8x)
- 50mm Length COB LED strips - (4x)
- 50mm Length COB LED strip - (2x)
