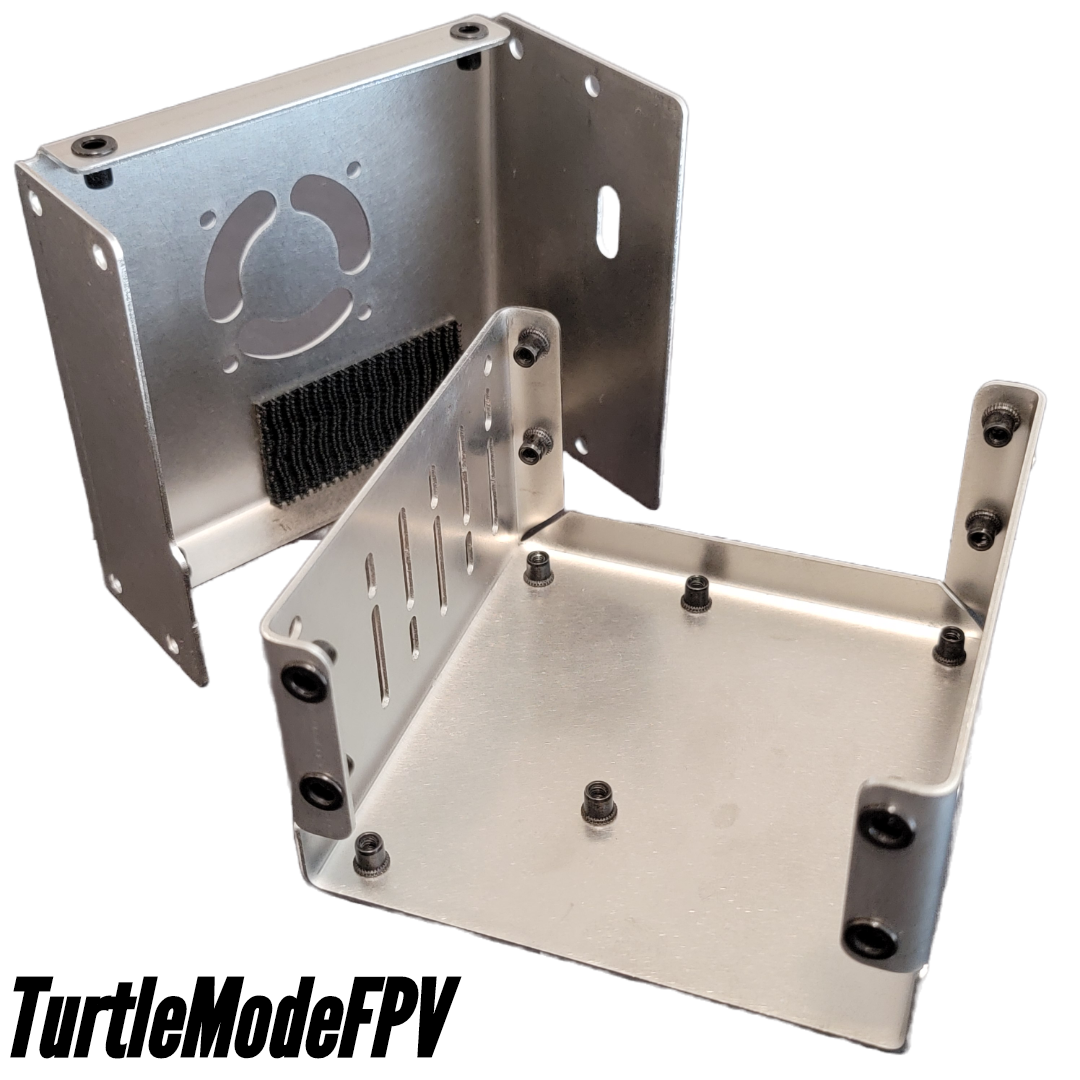

Fallout Case For NuclearHazard Core V4-V7 Lap Timers

Stainless Steel Fallout Cases by TurtleModeFPV offer the ultimate in protection and directional RF sheilding for your expensive lap timeing gear!!! Built to fit NuclearHazard Core V4-V7 FPV lap timing system...

Specs:

- Made from 18 gauge (0.049") 304 grade Stainless Steel for durability and corrosion resistance
- Integrated M3 rivet nuts & M3 hardware for easy assembly
- Gounded to timer board for excellent directional shielding from stray RF signals

Note: Case supports 40×40×10mm cooling fan mounting (some early version timer cores may have been supplied with 50mm fans)

Dimensions:

98mm × 103mm × 60mm Tall (approximately 4" × 4" × 2.5")

Included:

• Case Top (1x)
• Case Bottom (1x)
• M3×11mm+6mm Standoff Screws (RaspberryPI Standoff) (4x)
• M3×6mm Button Head Screws (Circuit Board Screws) (6x)
• M3×16mm Button Head Screws (Cooling Fan Screws) (4x)
• S-M3-2 Self Clinching Press Nuts (Cooling Fan Nuts) (4x)
• Ring Terminal; Wire Size 22-16; Stud Size #6 (Ground To Case) (1x)
• 28ga Wire; 2" length (Ground From Board To Case) (1x)
• 3M Dual Lock (Reciever Card Lock) (2"×1" Strip Pre-Installed) (1x)
• M3×8mm Button Head Screws (Exterior Case Screws) (12x)

Check out our video build guide on YouTube @ https://youtu.be/YZiZwjeIPtE?si=kerAW7XQerSq_mdN

TurtleModeFPV supports Open Source design... Find this & ALL of our designs, FREE to download on Thingiverse @  https://www.thingiverse.com/turtlemodefpv/designs

Purchase NuclearHazard lap timers by visiting NuclearQuads Website... (These are amazing products at an amazing price that TurtleModeFPV is happy to endorse). https://nuclearquads.github.io/shop/shop.html
