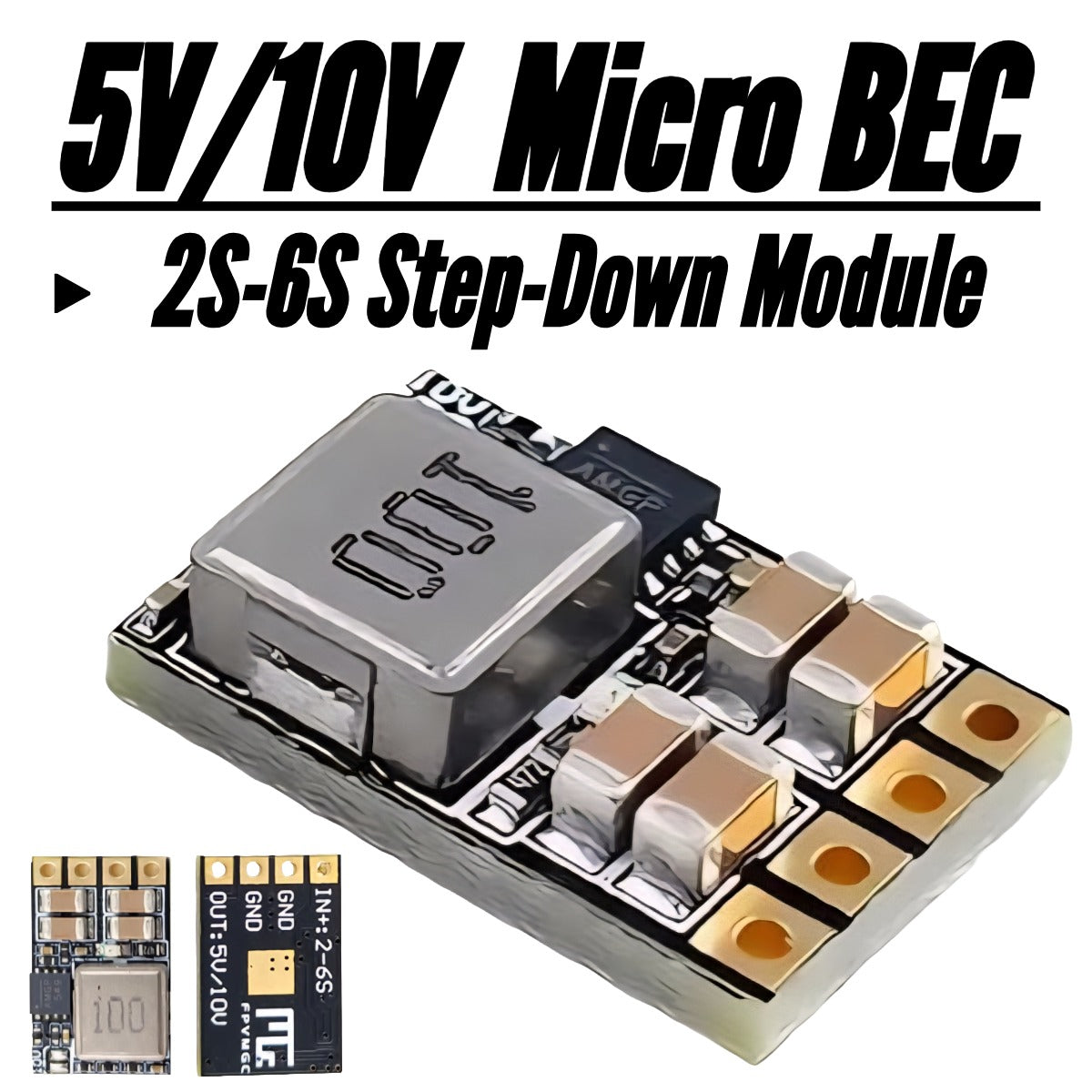

Micro BEC 2S-6S to 5V/10V step-down regulator

Micro BEC 2S-6S to 5V/10V Switch-type step-down regulator reduces input voltage from 24V to a stable low voltage

Input range:  2S-6S

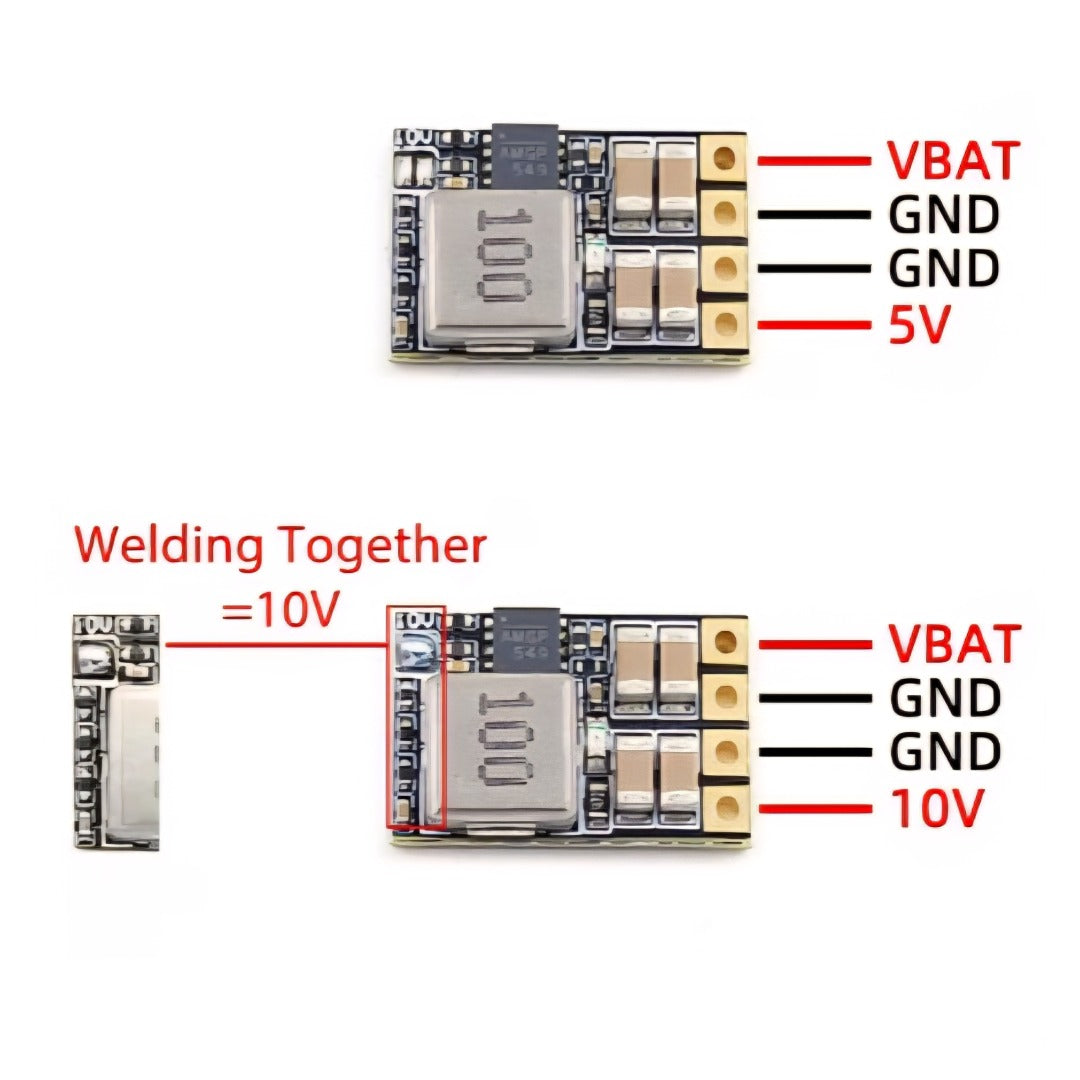

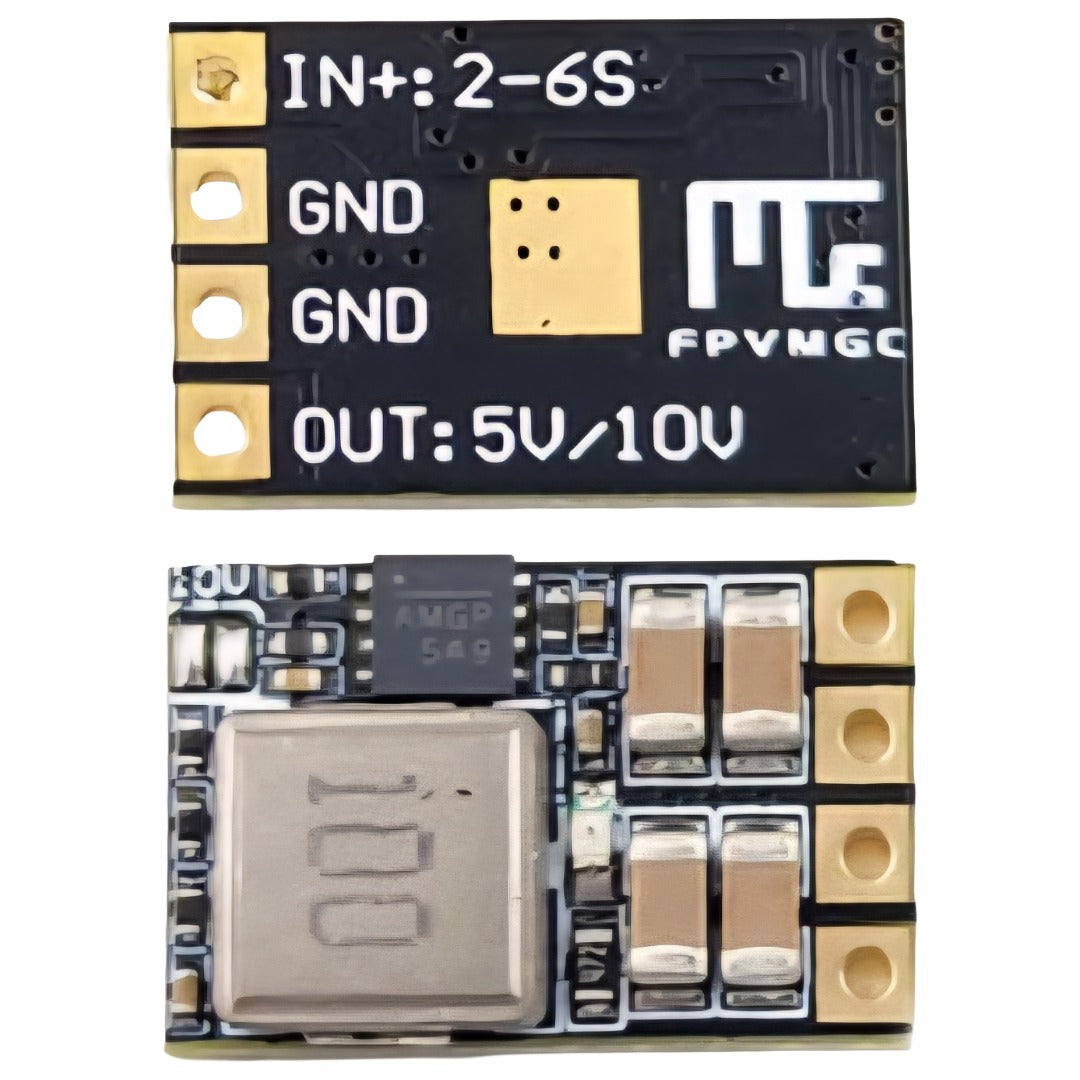

Output: 5V(3A) or 10V(2A) adjustable. Default is 5V, bridging the 2 solder pads, as shown in product images, switches board to 10V output.

Dimensions: 16mm x 10mm x 1.5mm

Weight: 1.6 grams

Voltage reduction: output 5V/10V can be selected; (by default, when there is no solder bridge) the output voltage is 5V(3A). When bridging the 2 corner solder pads, the output voltage is 10V(2A)

NOTE: This BEC step-down module can only reduce high voltage to low voltage, but cannot convert low voltage to high voltage (for example, a 2S battery can be converted to 5V(3A), but not to 10V(2A); A minimum of 3S is required for 10V(2A)

Included: Micro BEC 2S-6S to 5V/10V (1x)
