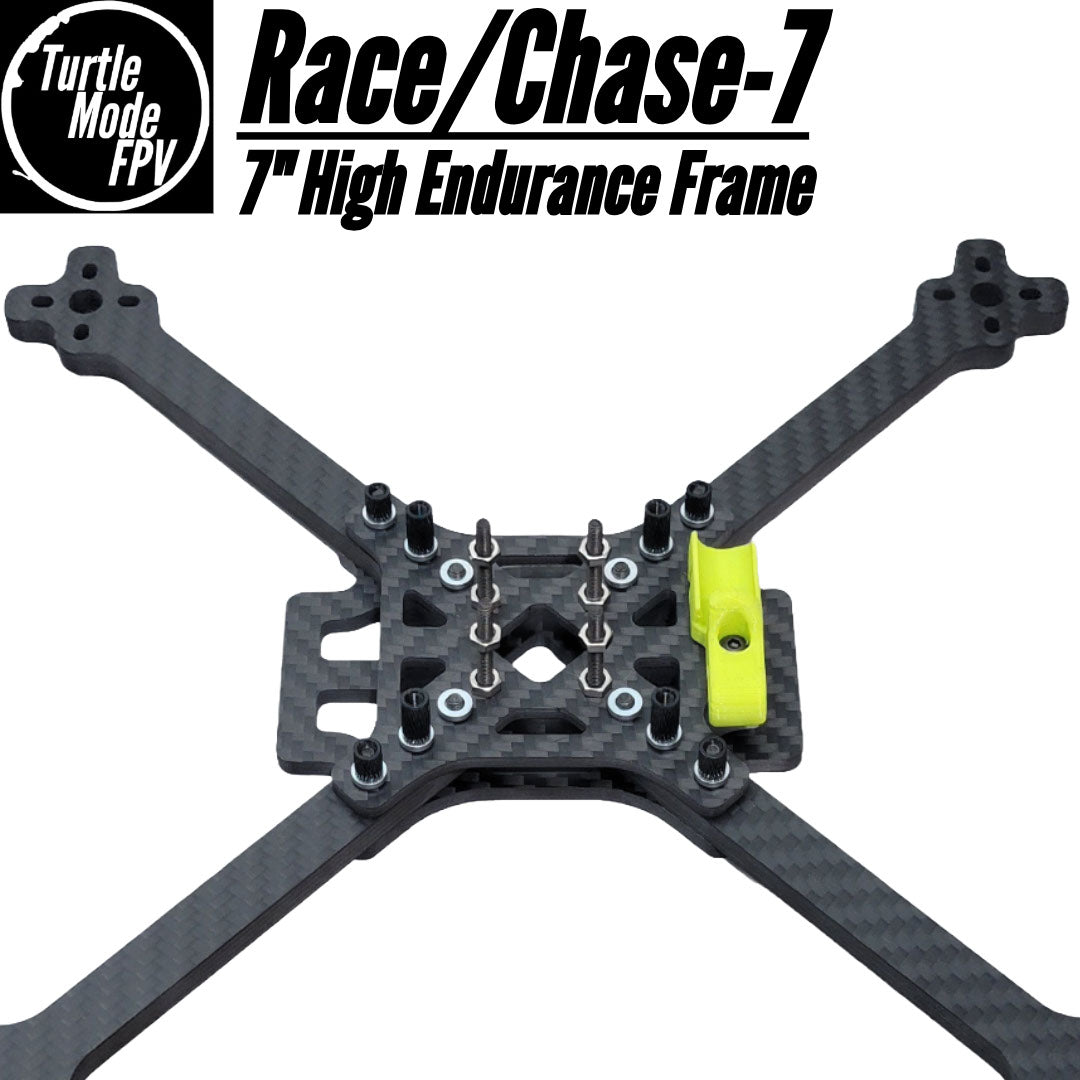

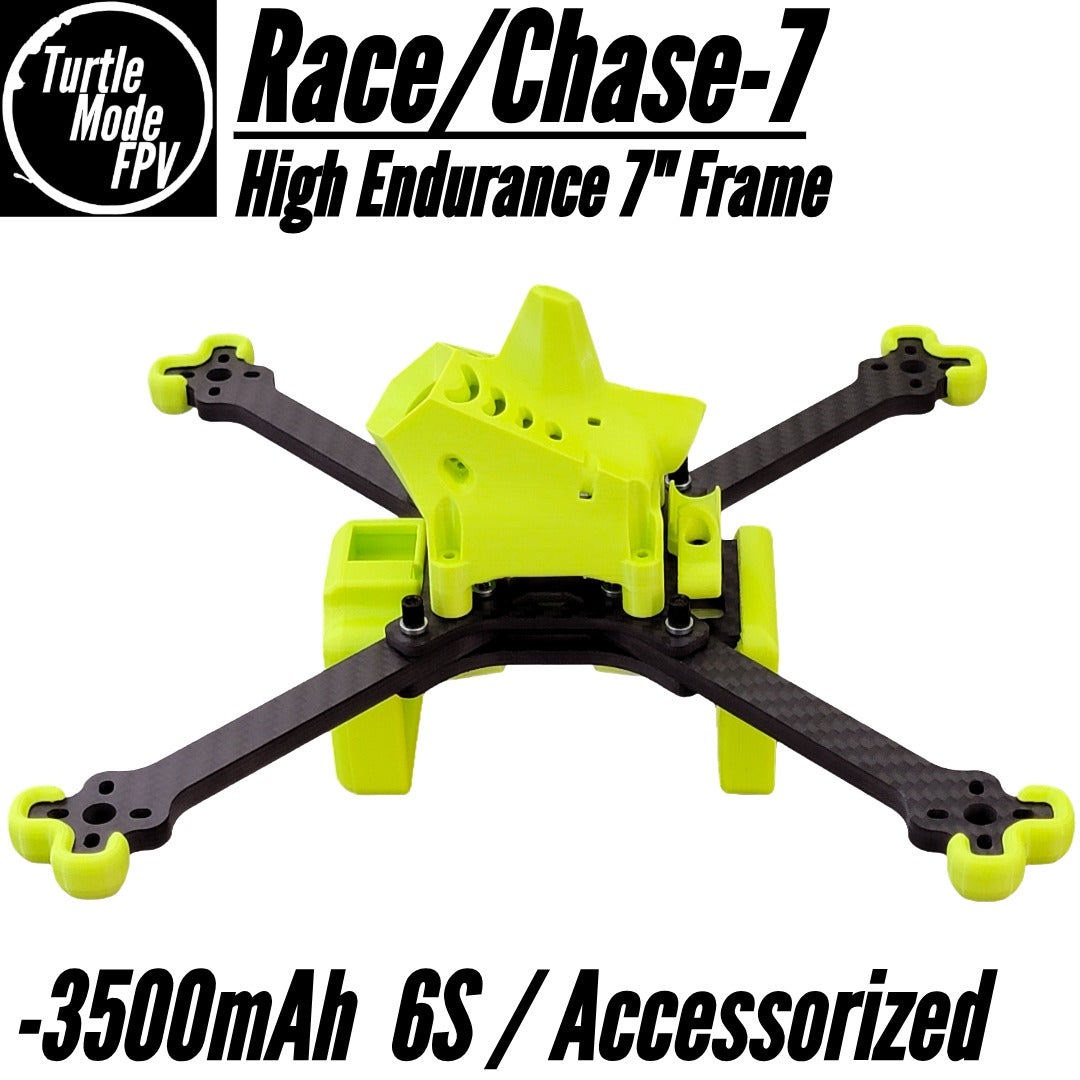

Race/Chase-7 - 3500mAh / Accessorized 7" High Endurance Frame, by TurtleModeFPV (Choose Options)

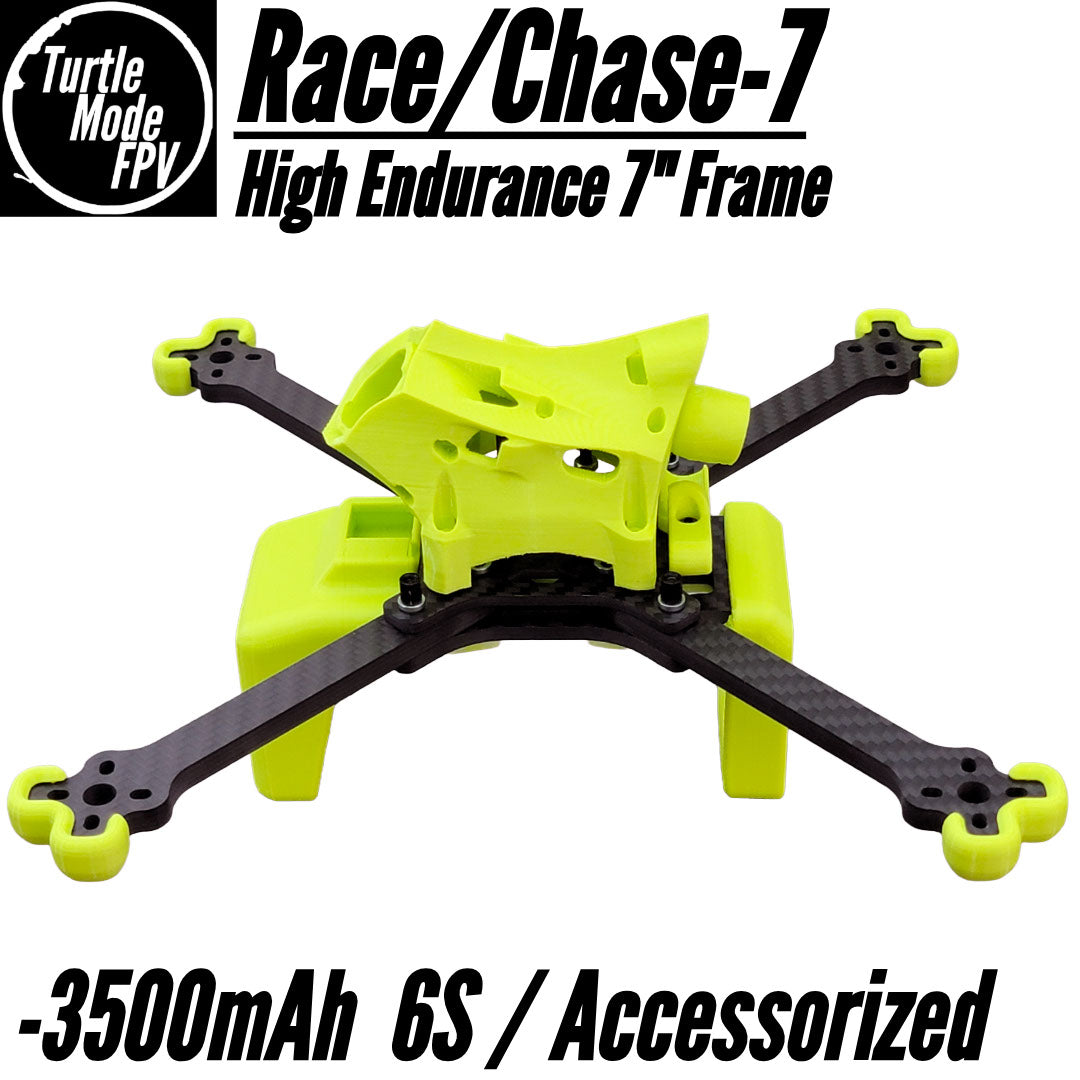

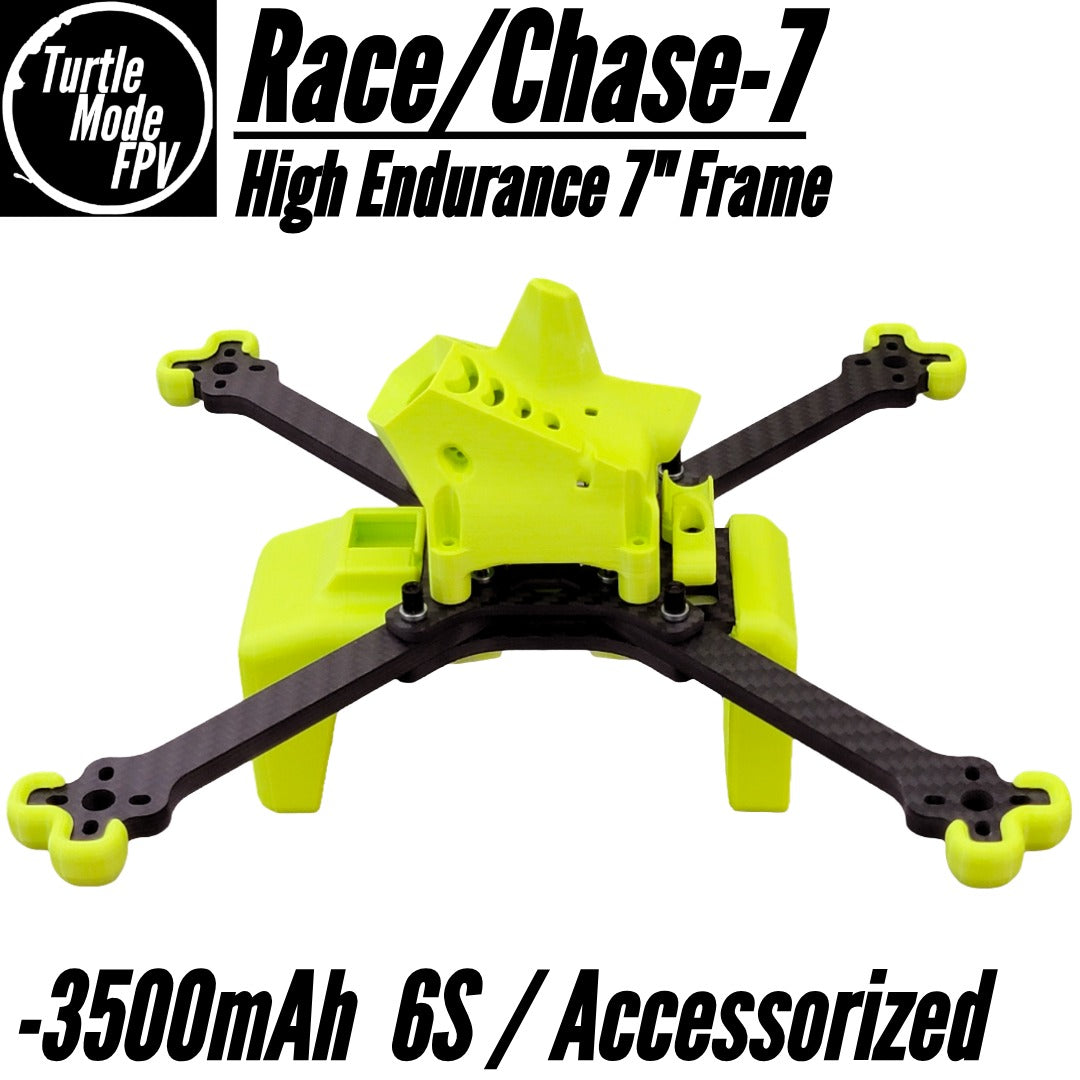

TurtleModeFPVs Race/Chase-7 is a Hybrid Endurance FPV Frame that checks all the boxes!!! High Speeds, Extended Flight Times & Exceptional Durability don't normally exist together... Enter The 2200 & 3500mAh 6S edition Race/Chase-7... With an empty Carbon & Hardware weight of only 135 grams, sporting 6mm thick ×12mm Arms a 4mm Base plate & 3mm top plate, this frame was built to get down... Race/Chase-7 Frame represents the 1st in our future line of High Speed, High Endurance, High Durability, Macro Quad Frames, by TurtleModeFPV...

Our purpose built frames don't pretend to be anything else!!! As implied by the name, Race/Chase-7 frames are designed around sustained high speed flight while retaining a high degree of durability and agility in dynamic flight environments... (Loosely designed with a DJI HD FPV system in mind as primary video recording device)... Race/Chase-7 Frames will appeal to the professional operator willing to trade heavy cameras for all out flight performance as well as the causual pilot seeking a fast fun recreational experience...

Re-Engineered: TurtleModeFPVs Race/Chase-7 is a light weight remix of our Street League proven HeavyMetal PRO Frame geometry... We started by replacing heavy steel with light weight carbon fiber, reduced center plates thickness & milled away any unused real-estate... The results?... A crazy 72% reduction in weight!!!, 482 grams (without TPU) down to 135 grams of pure unmatched performance and durability...

GPS/Remote ID Mounting: Race/Chase-7 Battery Armor integrates mounting for Newbeedrone Bee ID v1.1 (currently smallest most affordable GPS/Remote ID)... (May fit select NANO sized stand alone GPS)...

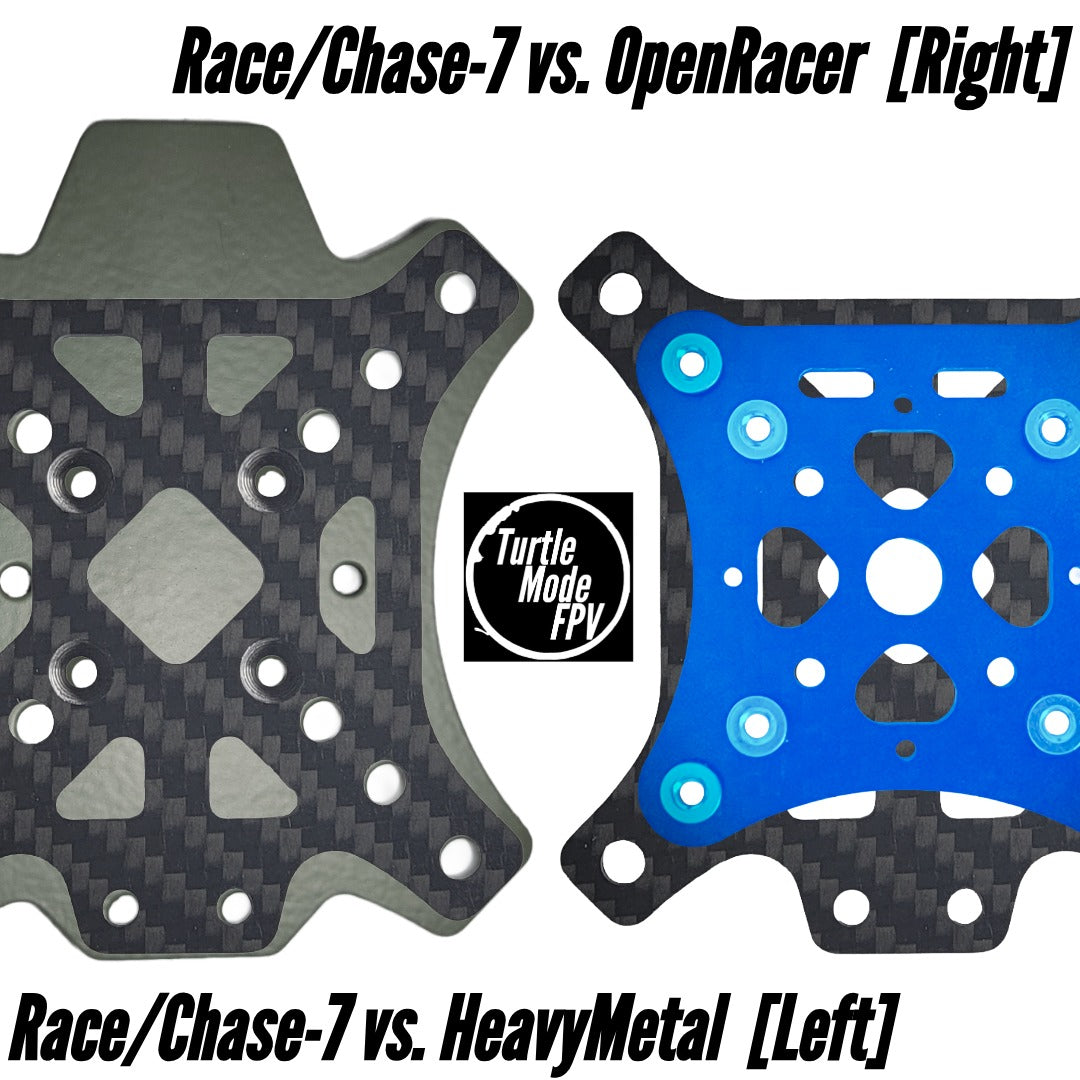

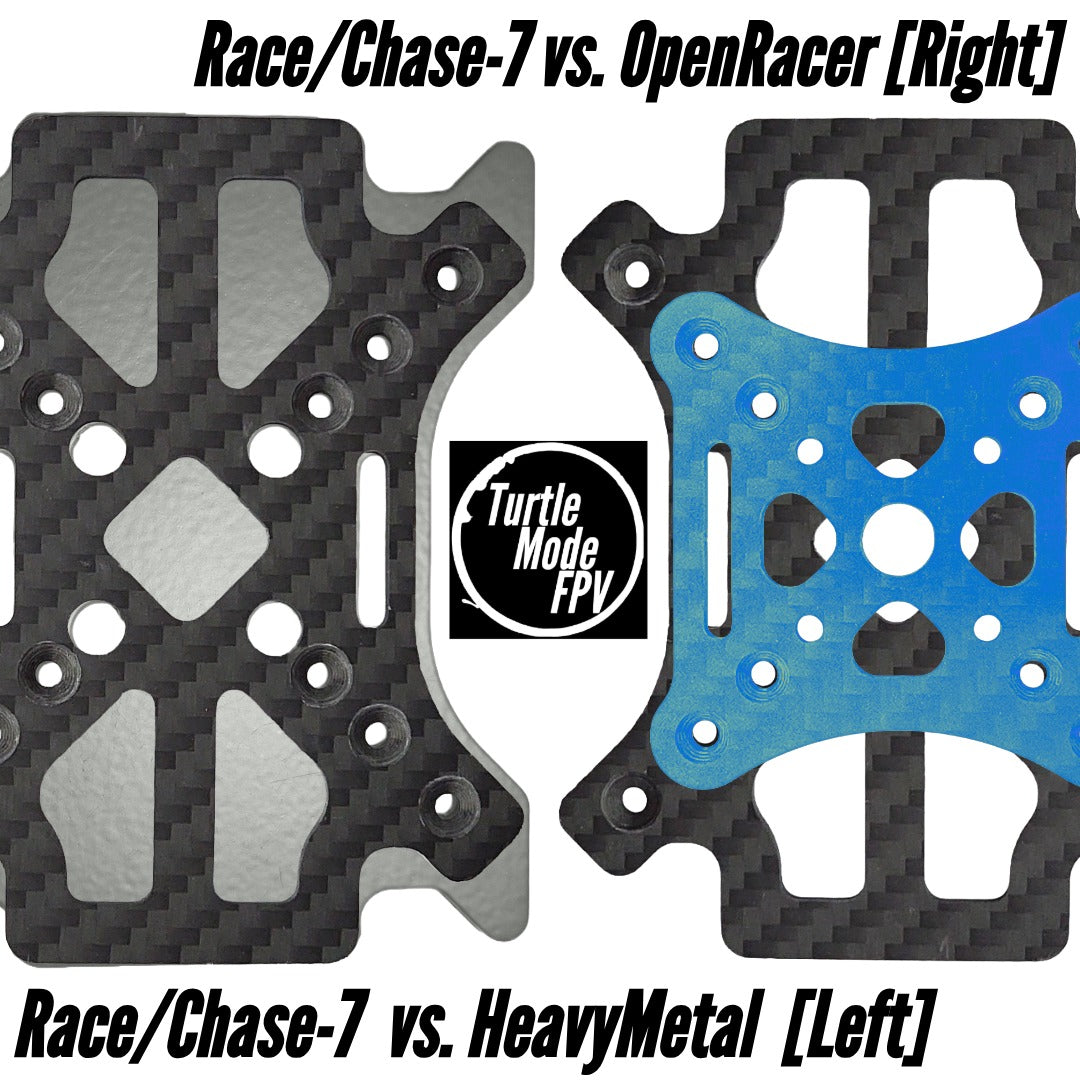

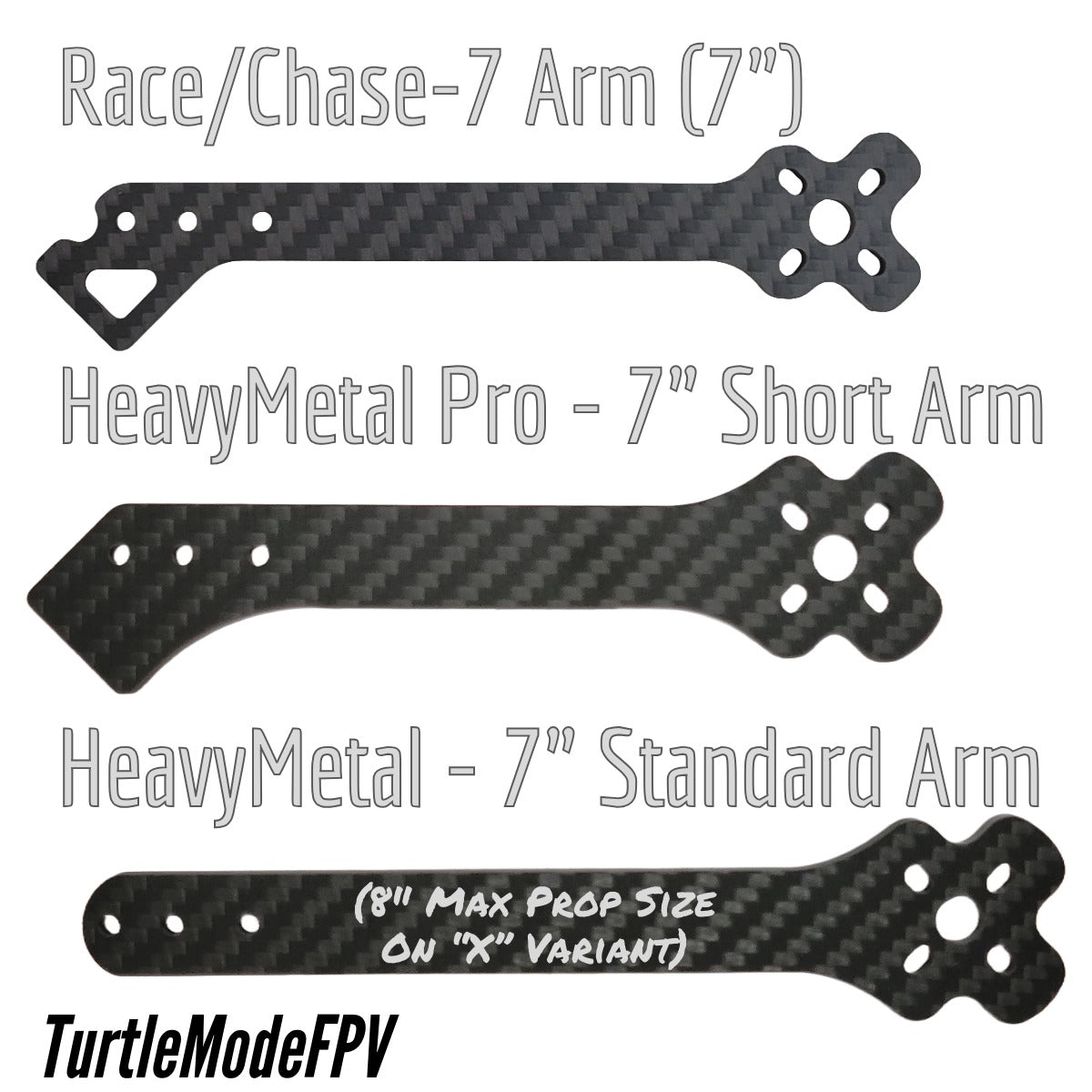

Cross Compatibility: The Race/Chase-7 Frame takes roots from: OpenRacer, SourceOneV3 & HeavyMetal Projects... As a result all 3 frames share varying degrees of cross compatability...

• All HeavyMetal and HeavyMetal PRO carbon is cross compatible with Race/Chase-7 Frames...
• All OpenRacer Pod Canopies are compatible with Race/Chase-7 Frames
• SourceOne V3 Arms and Original HeavyMetal 7" (Long) Arms are compatible with Race/Chase-7 Frames allowing up to an 8" propeller.
• Oversized & V2 Oversize Race-Wire NOT compatible with Race/Chase-7  - 7" Arms due to reduced arm width (15mm down to 12mm)... (We will be working on some new "High Amp Rated" Race-Wire geared towards 8S & 12S Macro Quads in the near future!!!)

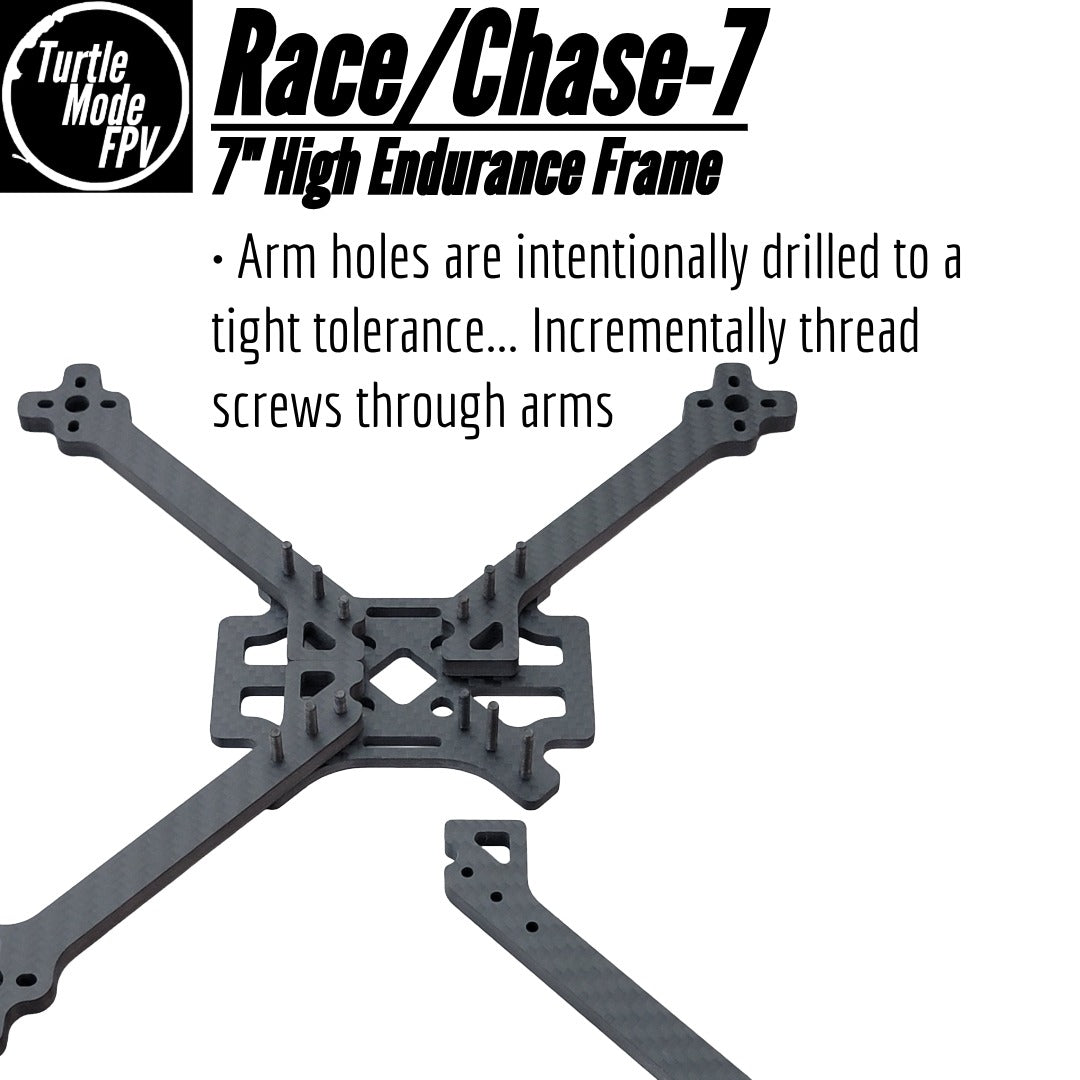

Undsized Holes & Boomerang Arm Locks: Race/Chase-7 carbon is CNC machined to a high degree of accuracy... holes are spec. at 2.9mm for a tight Non-Slip fit that eliminates vibrations, improving tunability & durability... The downside id screws will not simply slide through arm holes and will need to be threaded in... (Screws will turn freely with some resistance once completely bottomed out)...

Battery Armor Installation: Use a narrow puddy knife for effortless installation (See our Battery Armor Installation Video on TurtleModeFPVs YouTube Channel)...

Weight w/ TPU Accessories: 230 grams +/-5g

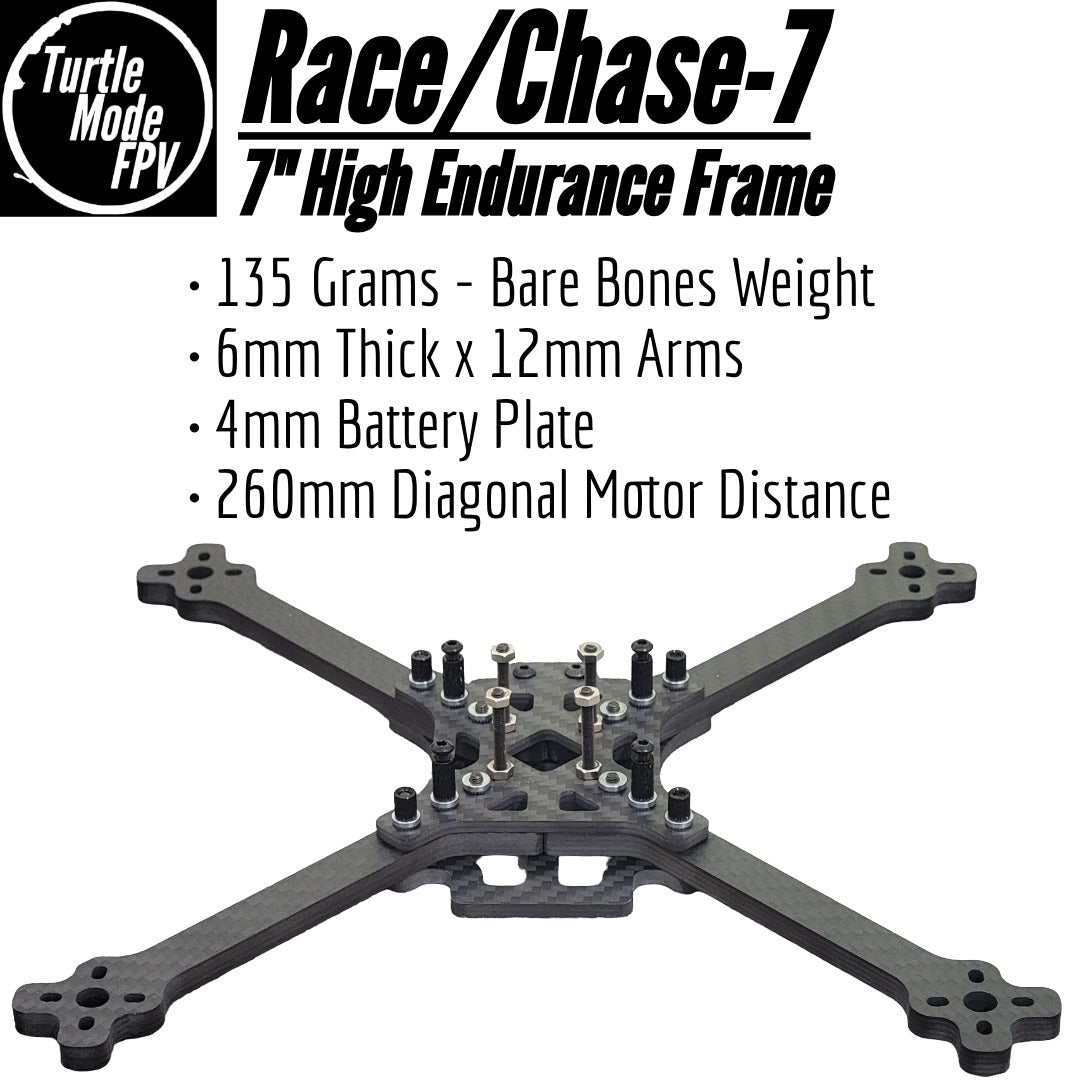

Specs: 260mm motor post to motor post diagonally | Tru-X | 6mm × 12mm Carbon Fiber Arms | 3mm Center Plates | 20mm x 20mm FC Mounting | 30mm × 30mm FC Mounting (sharing arm screw / not recommended)

Download Race/Chase-7 3D Print Files, plus our collection of 50+ fixed angle Pod Canopy variants designed in support of the  OpenRacer Project FREE @ https://www.thingiverse.com/turtlemodefpv/designs

Note: This design is part of the Race/Chase-7 - 7" High Endurance Frame open source project of which TurtleModeFPV is the originator and designer... .dxf /.stp /.stl frame files available here. (Link Coming Soon...)

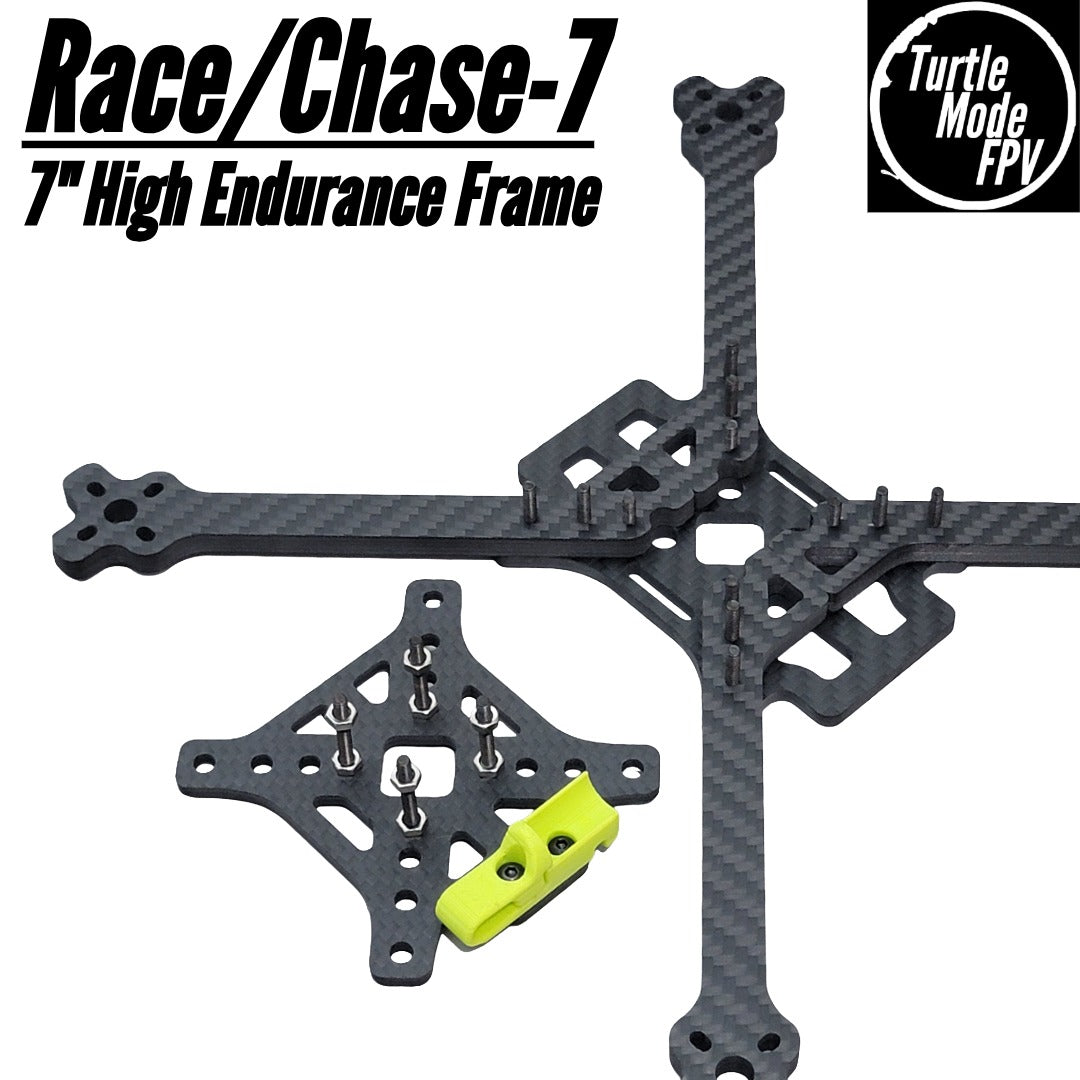

Included:

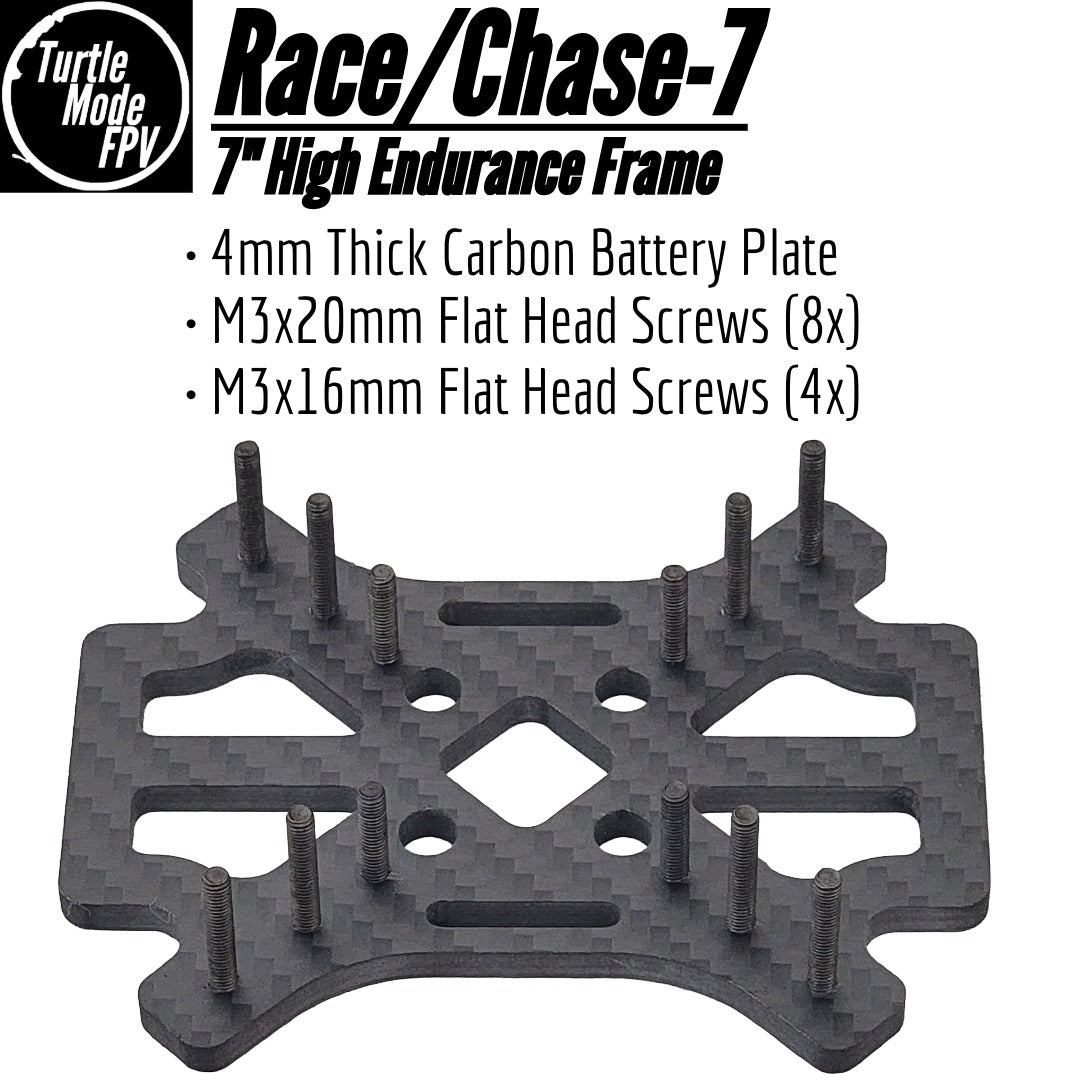

- Race/Chase-7 - Battery Plate - (1x)
- Race/Chase-7 - Stack Plate - (1x)
- Race/Chase-7 - 7" Arms - (4x)
- Race/Chase-7 - Hardware Kit - (1x)
- Race/Chase-7 - Pod Canopy - (1x)
- Race/Chase-7 - Battery Armor - (1x)
- Race/Chase-7 - Arm Guards - (4x)
- Race/Chase-7 - Cable Grip - (1x)

Additional Resources:

Check Out TurtleModeFPV HeavyMetal Build Guide Series on YouTube (Nearly identical to Race/Chase-7 Assembly)... We will be releasing a dedicated R/C-7 series in the near future...

Check Out OpenRace GetHub: Links to frame files, pod canopies & build guide @ https://github.com/OpenRacer/OpenRacer

TurtleModeFPV is an official frame sponsor of Street League Spec Drone Racing: See our HeavyMetal Frame and download custom Street League firmware @ https://streetleague.io/build-guide/
